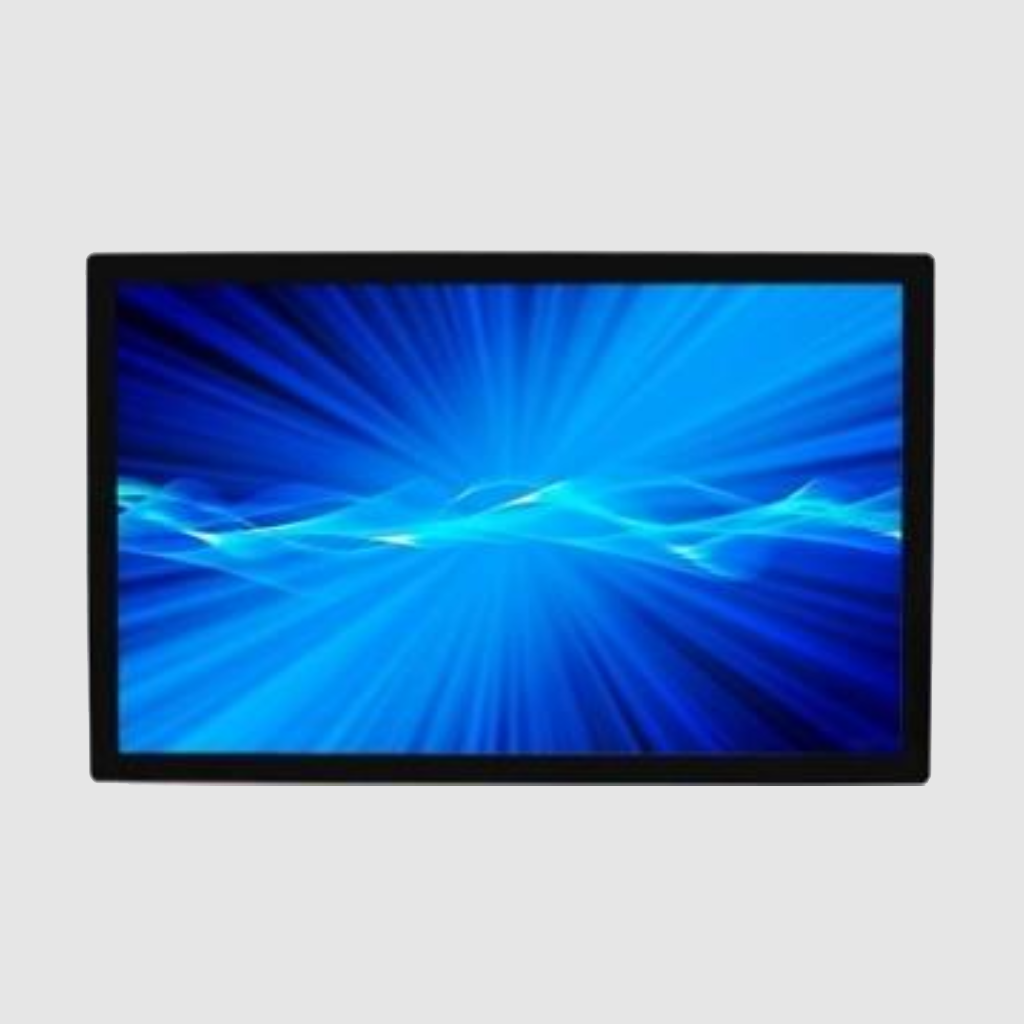

34” Industrial Display Monitor
34” Industrial LED 4k Display with PCAP Touch
Features:
- The PW-ILD-340-4T is a Color Active Matrix Liquid Crystal Display Monitor with an integral LED backlight system.
- It has a 34” inch diagonal screen size with 799.8(W)×334.8(H) mm measured active display area
- It can present a palette of more than 1.07Bilion colors.
- This size 34” Display Monitor supports LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut, high color depth and fast response time are important
- Hi-brightness and Hi-contrast display
- Wide input option of DVI, HDMI and VGA
- PCAP touch included
Specifications
Specifications
| Model#. | PW-ILD-340-4T |
|---|---|
| Active Screen Size | 34 inches diagonal LCD TFT with LED backlight |
| Touch | Projected Capacitive Touch (PCAP touchscreen optional) |
| Resolution | 3440(RGB)×1440 – 109PPI |
| Active View Area | 799.8(W)×334.8(H) mm |
| Aspect Ratio | 21:9 (H:V) |
| Input options | DVI, HDMI, VGA, USB (only for touch) |
| Color Depth | 16.7M colors |
| OSD | Rear side OSD buttons |
| Mounting | Wall and Rack-mount options |
| Luminance | 300cd/m2 (Center 1 point , Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle (CR>10) | 89/89/89/89 (Typ.)(CR≥10) |
| Power Consumption | 230V AC input / DC input option available |
| Environment | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C |
| Weight | Approx. 24kgs |
| Surface Treatment | Hard coating(2H), Anti-glare treatment |
| Possible Display Type | Portrait |
| Mechanical | TBD |
| Warranty | 12 months (extended warranty on demand) |
| Lead time | 8 weeks ARO |
