ranger 3
Ranger 3
Ranger 3 is the 6.58-inch full-screen flagship device, designed for teams that want more display space and a more advanced mobile terminal.
Core highlights
- 6.58-inch flagship screen
- Large display for complex apps
- Premium Ranger series positioning
- Suitable for enterprise mobility projects

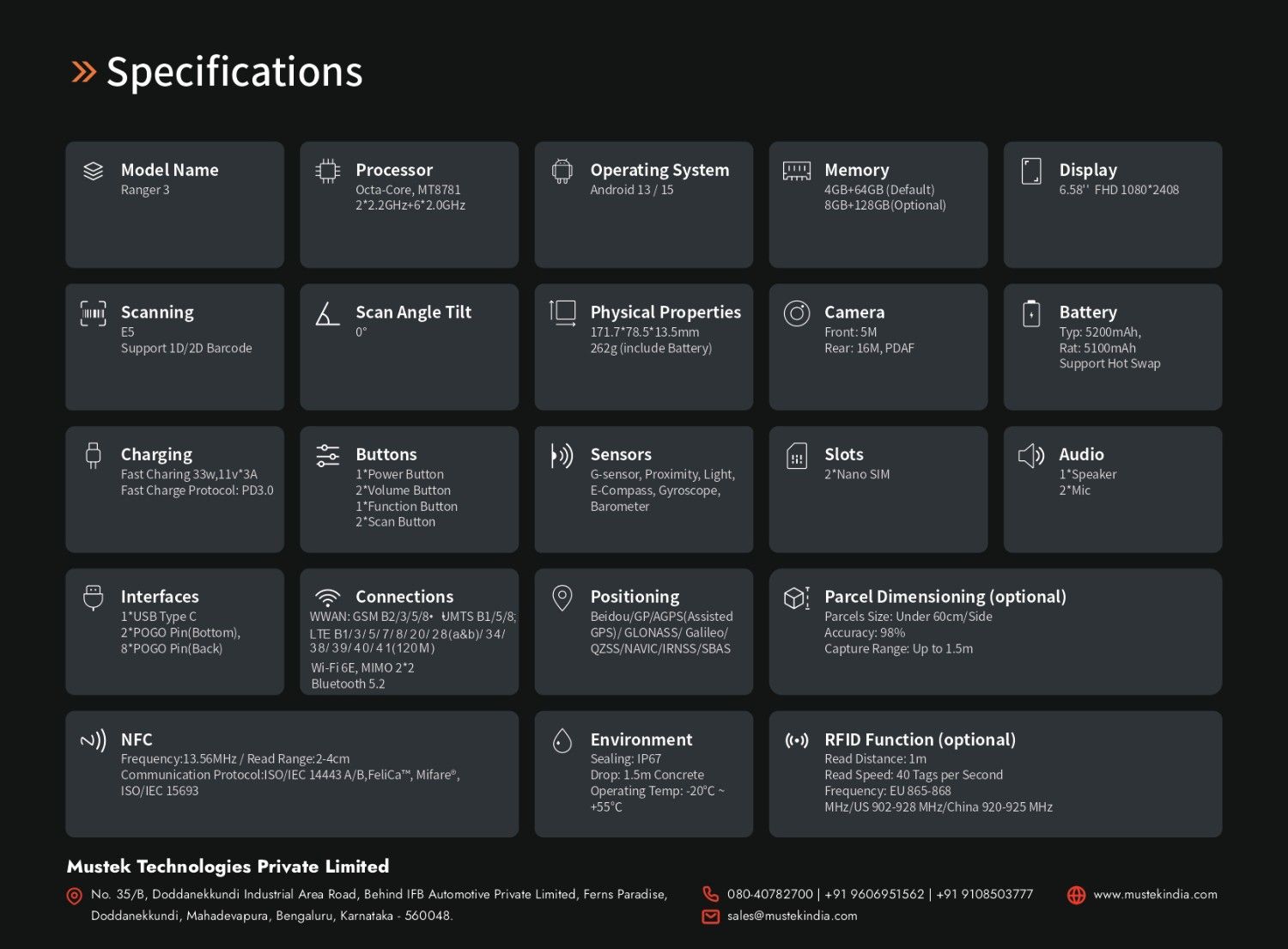

Specification
Specification
| Model Name | Ranger 3 |
|---|---|
| Processor | Octa-Core, MT8781 (2×2.2GHz + 6×2.0GHz) |
| Operating System | Android 13 / 15 |
| Memory | 4GB + 64GB (Default) 8GB + 128GB (Optional) |
| Display | 6.58″ FHD (1080 × 2408) |
| Scanning | E5 Supports 1D/2D Barcode |
| Scan Angle Tilt | 0° |
| Physical Properties | 171.7 × 78.5 × 13.5 mm 262 g (Including Battery) |
| Camera | Front: 5 MP Rear: 16 MP, PDAF |
| Battery | Typical: 5200mAh Rated: 5100mAh Supports Hot Swap |
| Charging | Fast Charging 33W (11V × 3A) Fast Charge Protocol: PD3.0 |
| Buttons | 1 × Power Button 2 × Volume Buttons 1 × Function Button 2 × Scan Buttons |
| Sensors | G-Sensor, Proximity Sensor, Light Sensor, E-Compass, Gyroscope, Barometer |
| Slots | 2 × Nano SIM |
| Audio | 1 × Speaker 2 × Microphones |
| Interfaces | 1 × USB Type-C 2 × POGO Pins (Bottom) 8 × POGO Pins (Back) |
| Connections | WWAN: GSM B2/3/5/8, UMTS B1/5/8, LTE B1/3/5/7/8/20/28(a&b)/34/38/39/40/41(120M)Wireless: Wi-Fi 6E (MIMO 2×2), Bluetooth 5.2 |
| Positioning | Beidou, GPS, AGPS (Assisted GPS), GLONASS, Galileo, QZSS, NavIC, IRNSS, SBAS |
| Parcel Dimensioning (Optional) | Parcel Size: Under 60 cm/Side Accuracy: 98% Capture Range: Up to 1.5 m |
| NFC | Frequency: 13.56 MHz Read Range: 2–4 cm Communication Protocol: ISO/IEC 14443 A/B, FeliCa™, MIFARE®, ISO/IEC 15693 |
| Environment | Sealing: IP67 Drop: 1.5 m onto Concrete Operating Temperature: -20°C to +55°C |
| RFID Function (Optional) | Read Distance: 1 m Read Speed: 40 Tags/Second Frequency: • EU: 865–868 MHz • US: 902–928 MHz • China: 920–925 MHz |
