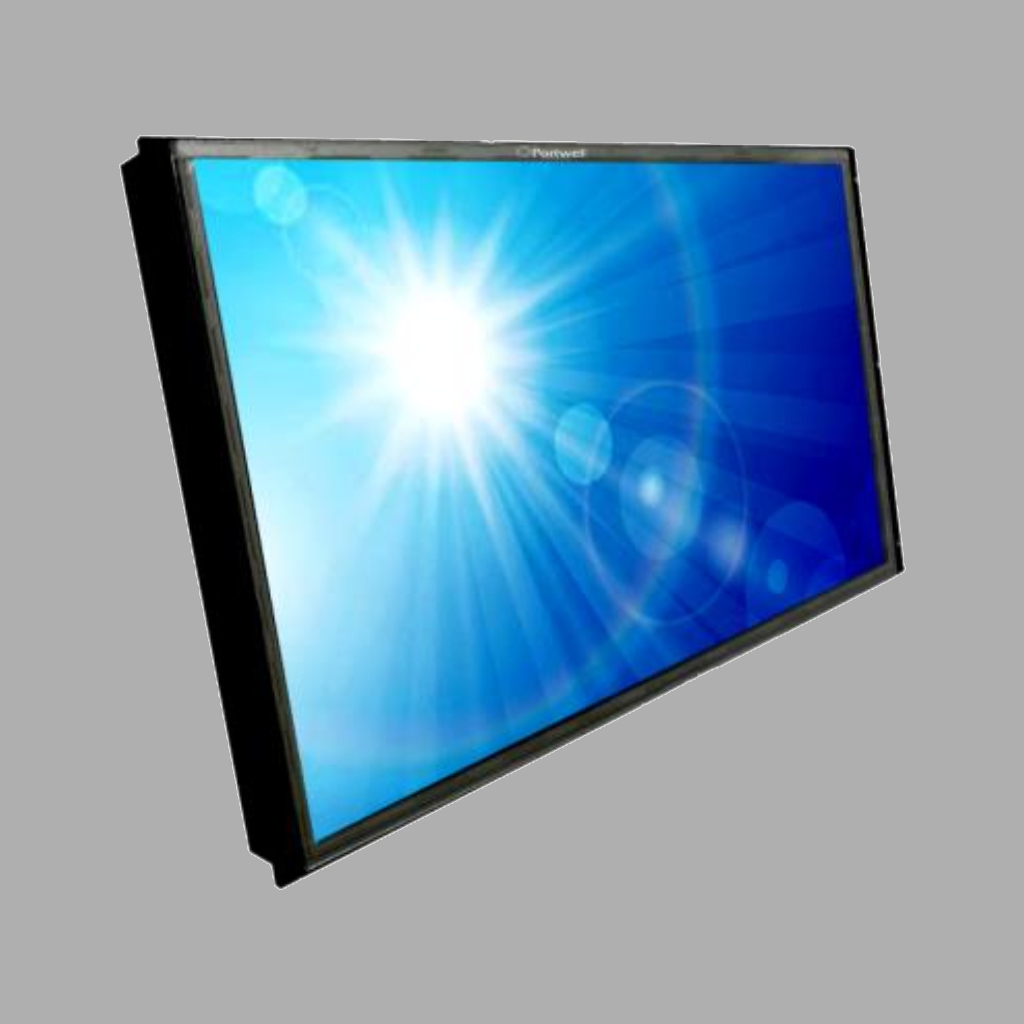

24” Inch Industrial Display
24” Inch Industrial Display
Features :
- The ILD-PW-24WR2 is a Color Active Matrix Liquid Crystal Display Monitor with an integral LED backlight system.
- It has a 23.8 inch diagonally measured active display area with UHD resolution (3840(RGB)×2160 pixel array).
- It can present a palette of more than 1.07Bilion colors.
- This size 24” Display Monitor supports LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut, high color
- depth and fast response time are important
- Hi-brightness and Hi-contrast display
- Wide input option of DVI, HDMI and VGA
- PCAP touch included
Specifications
Specifications
| Display Monitor | ILD-PW-24WR2 – 24″ LCD TFT with LED backlight |
| Active Screen Size | 23.8 inches diagonal – UHD 185PPI Display screen |
| Touch | Projected Capacitive Touch (PCAP touchscreen – optional) |
| Resolution | 3840(RGB)×2160, UHD 185PPI |
| Active View Area | 527.04(W)×296.46(H) mm |
| Aspect Ratio | 16:9 (H:V) |
| Input options | DVI, HDMI, VGA, USB(only for touch) |
| Color Depth | 10bit matte, 1.07Billon colors |
| OSD | Side/Bottom OSD buttons |
| Mounting | Table/Vesa/Wall |
| Luminance, White | 500cd/m2 (Center 1point ,Typ.) Contrast Ratio |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle (CR>10) | 89/89/89/89 (Typ.) |
| Power Consumption | 12V~36V DC input/230V AC input(optional) |
| Environment | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C |
| Weight | Approx. 12kgs |
| Surface Treatment | Hard coating(2H), Anti-glare treatment |
| Possible Display Type | Landscape Mode |
| Mechanical | 569(W)×350(H) ×24(D) mm approx. |
| Warranty | 12 months(extended warranty on demand) |
| Lead time | 10 weeks ARO |
