ZX420i+
ZX420i+
Power & Precision in One Compact Design
Small in size and powerful in performance. Upgraded Flash and SDRAM enable the ZX400i+ series to withstand more difficult printing conditions.
- Die-Cast Printing Mechanism
- Small Footprint
- 1 Inch Label Roll Holder
Description
specification
Description
- 4″ wide, DT/TT Industrial Printer, India, 203 dpi, 6 IPS, LCD, I/F: USB
- Serial &Ethernet &USB host, support BT, Wifi (011-42i00J-A00)
specification
| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 203 dpi (8 dots/mm) / 300 dpi (12 dot/mm) |
| Print Speed | Up to 6 ips (152 mm/s) / Up to 4 ips (102 mm/s) |
| Print Width | 4.25” (108 mm) / 4.16” (105.7 mm) |
| Print Length | Min. 0.12” (3 mm)** ;Max . 279.53” (7100mm) / Min. 0.12” (3 mm)** ;Max. 125.98” (3200mm) |
| Processor | 32-bit RISC CPU |
| Memory | Flash 128 MB SDRAM 128 MB |

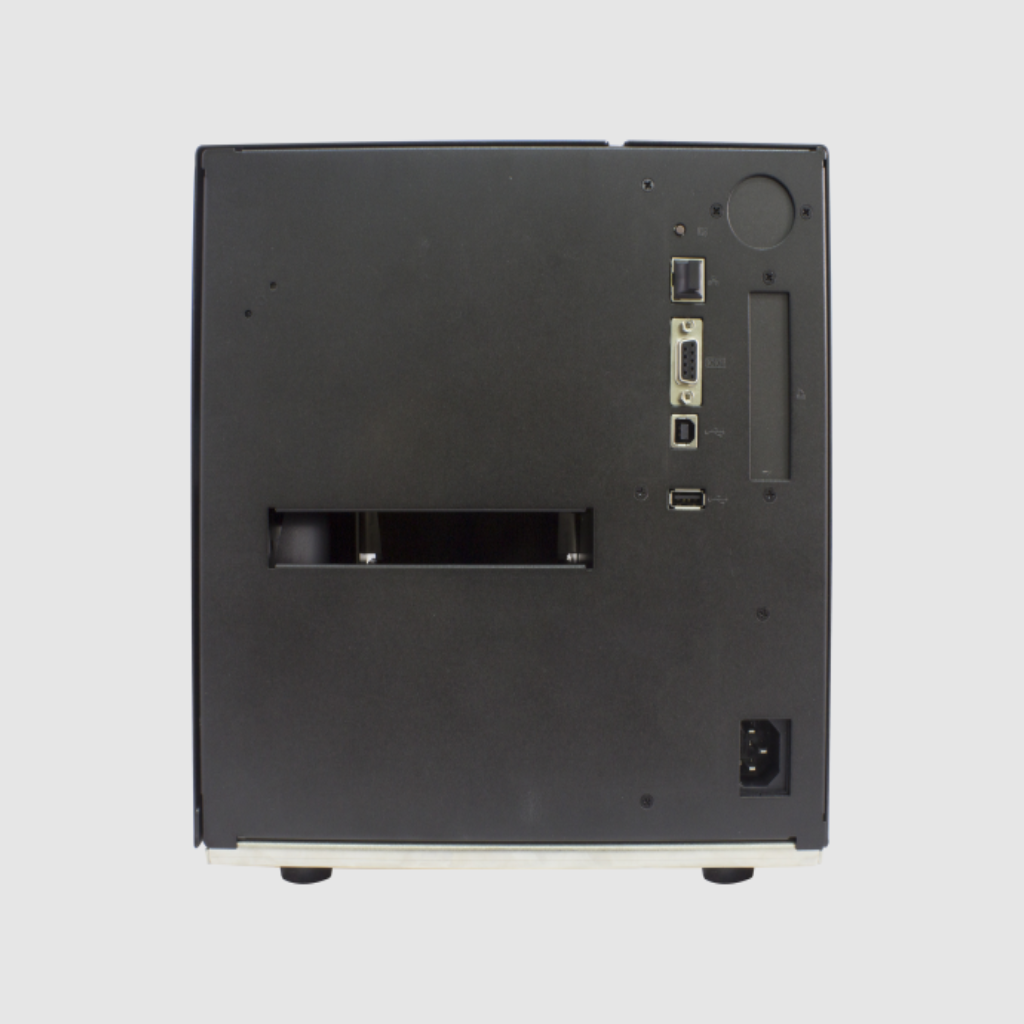

| Interfaces | USB 2.0 (Type B) • Serial Port (RS232) • Ethernet 10/100 Mbps • USB Host (Type A) |
| Ribbon | • Length Max. 1476’ (450 m) • Width Min. 1.18” (30 mm) – Max. 4.33” (110 mm) • Ribbon roll diameter 3” (76.2 mm) • Core diameter 1” (25.4 mm) |
| Control Panel | •Color TFT LCD with navigation button •1 Power on/standby button with green color LED backlight •1 Calibration button at rear panel •1 Control key : FEED / PAUSE / CANCEL with dual color LED backlight: Ready (Green); Error (Red) |
