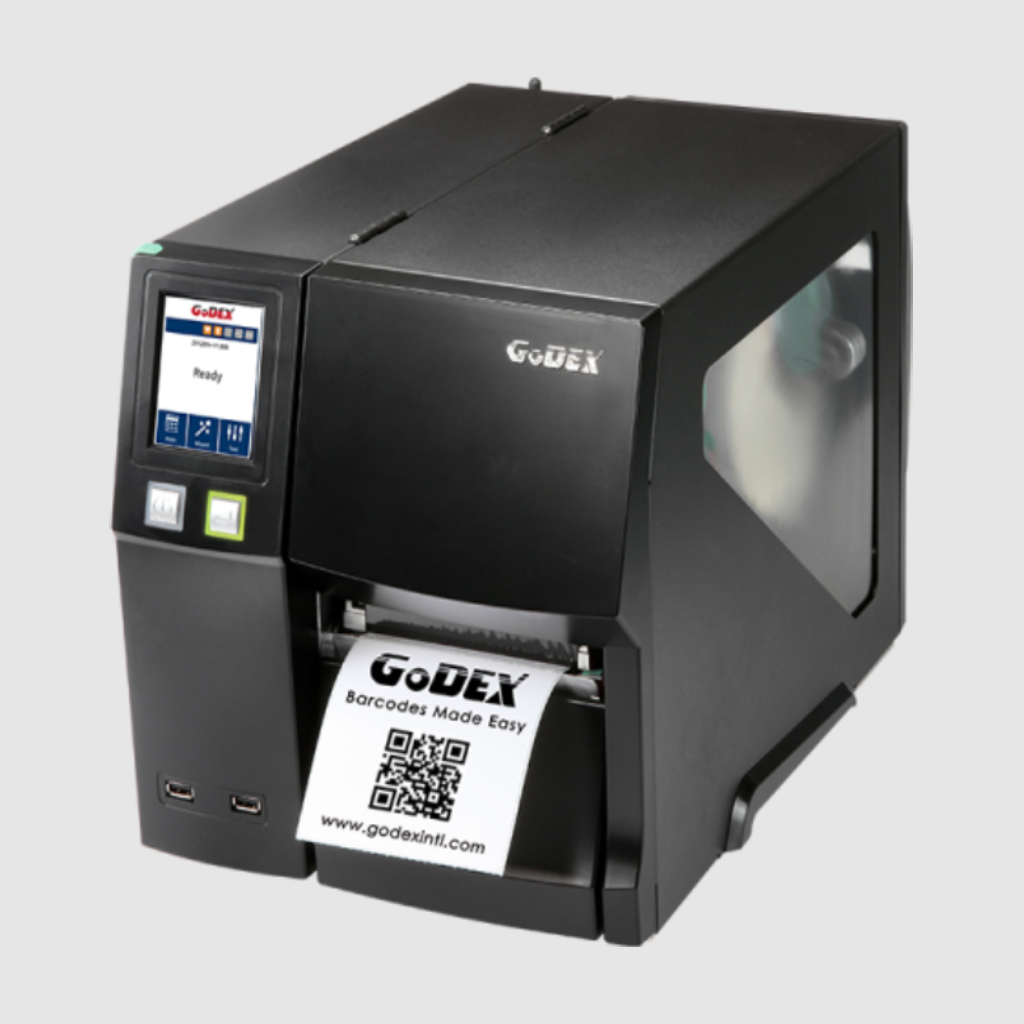

ZX1200Xi plus / ZX1300Xi plus
High Speed & Prime Performance
Time costs money, especially on the production line where every second counts. The High-Speed ZX1000Xi series will without a doubt elevate your performance and your productivity.
- Sturdy Structure & Ultrarapid Printing
- Effortless Media & Ribbon Loading
- Intuitive and User-Friendly UI
- Space Saving Stand-Alone Feature
- Distinct Dual-Colored Status LEDs
- Multiple Connectivity Options
Specification
Specification
| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 203 dpi (8 dots/mm) / 300 dpi (12 dot/mm) |
| Print Speed | Up to 14 ips (356 mm/s) / Up to 10 ips (254 mm/s) |
| Print Width | 4.09” (104 mm) / 4.09” (104 mm, up to 105.7 mm) |
| Print Length | Min. 0.12” (3 mm)** ;Max . 279.53” (7100 mm) / Min. 0.12” (3 mm)** ;Max. 125.98” (3200 mm) |
| Processor | 32-bit RISC CPU |
| Memory | Flash 256 MB SDRAM 256 MB |
| Interfaces | • USB 2.0 (Type B) • Serial Port (RS232) • Ethernet 10/100 Mbps • USB Host *3(Type A). 2 ports at the front panel, 1 port at the rear panel |
| Ribbon | • Length Max. 1476’ (450 m) • Width Min. 1.18” (30 mm) – Max. 4.33” (110 mm) • Ribbon roll diameter 3” (76.2 mm) • Core diameter 1” (25.4 mm) |
| Control Panel | • Backlight 3.2” touch screen LCD • 1 Power on/off button with green colour LED backlight • 1 Control key: FEED/PAUSE/CANCEL with dual colour LED backlight: Ready(Green); Error(Red) • 1 Calibration button at rear panel |
