PM45A10000000206

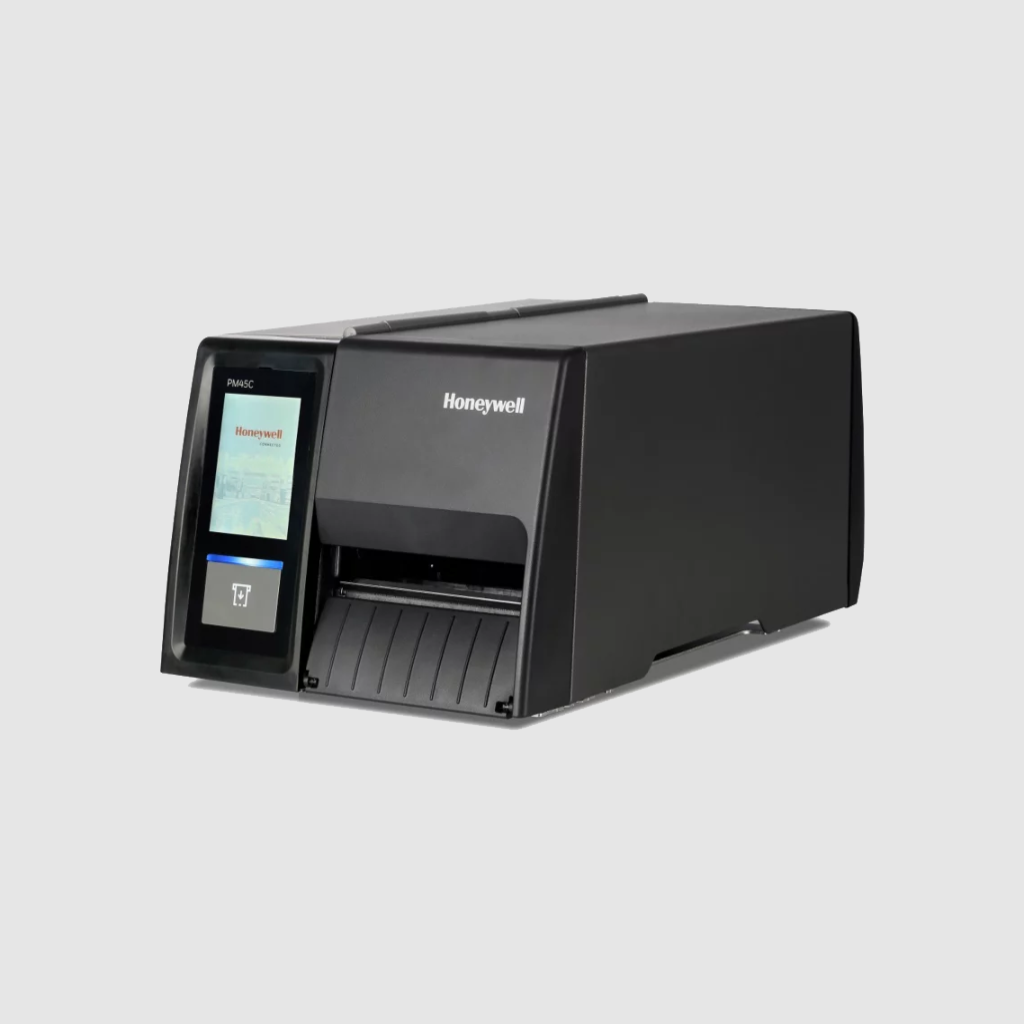

PM45 Industrial Printer
The Honeywell PM45 is built for smart label solutions that help enterprises enhance automation and intelligence in manufacturing and supply chain management for high operating efficiency.
Description
Tailored for Today’s Challenges
The Honeywell PM45 industrial printer meets rising demands for production flexibility, inventory turnover, and cost control. With track-and-trace functionality, it enhances printing efficiency and supply chain transparency across various industries, including food and beverage, pharmaceuticals, and manufacturing.
Superior Printing Performance
Built on the Honeywell print platform, the PM45 achieves speeds of up to 14 inches per second and a print registration of ±0.5 mm, ensuring high-quality prints for barcodes, text, and images—including small labels for electronics and medical devices.
Seamless Connectivity
Featuring advanced WWAN connectivity, the PM45 adapts to diverse site network configurations and supports RFID, parallel, industrial, and applicator interfaces, allowing your business to scale seamlessly.
Smart Integration
Designed for intelligent manufacturing, the PM45 supports multiple network protocols and print languages. Honeywell’s Smart Parse software enables quick label design adjustments, while Operational Intelligence allows for remote performance monitoring.
Maintenance Made Easy
Supporting various media types, including ink-in and ink-out ribbons with a 1-inch core size, the PM45 maximizes uptime. Its rugged all-metal mechanism and tool-free printhead replacement ensure reliability in demanding environments.
Specifications
Applications & Compatibility
Compatible Software
- BarTender
- Nicelabel
- Operational Intelligence
- SOTI Connect
- Teklynx Labelview
Application
- Food and beverage
- Healthcare
- Warehouse and distribution center
Technical Specifications
Compatible Drivers
- CUPS Driver for Linux
- Certified Device Types for SAP
- InterDriver Windows
Downloadable Font Type
- Bitmap Font
- OpenType Font (TrueType based)
- TrueType Font
Linear Barcodes
- All major 1D barcodes
Print Speeds
- 50-350mm/s (2-14 ips)
Print Method
- Direct Thermal
- Thermal Transfer
Resolutions
- 203 dpi
- 300 dpi
- 406 dpi
- 600 dpi
Printer Media Type
- Label
- Linered
- RFID
- Tag
Wireless Communication
- IEEE 802.11 a/b/g/n/ac
- TLS, PEAP, TTLS, PWD, LEAP, FAST
- WWAN Radio
- Wi-Fi Certified
Printer Command Language
- C# Smart Printing
- DPL
- Direct Protocol (DP)
- Fingerprint (FP)
- Intermec Printer Language (IPL)
- XML-enabled for SAP AII and Oracle WMS
- ZSim2 (ZPL-II)
Memory
- External Multi-GB USB memory device (FAT16/FAT32)
Image File Format
- BMP
- GIF
- PCX
- PNG
Flash Memory
- 512 MB
RAM Memory
- 256 MB
Printer Connection Interface
- Applicator Interface
- Industrial interface
- Parallel Interface (IEEE 1284)
- RFID
- RS-232
- USB 2.0 Host (x2 PM45, x1 PM45C)
Operating Frequency
- 50 – 60 Hz
Bluetooth Specifications
- Bluetooth Classic 5.0
Network Specifications
- Ethernet 10/100 Mbps
RFID Specifications
- RFID
Font Engine
- Monotype Font Engine
- WTLE for Global Language Support
- Platform
- Honeywell Printer Edge
Features
Features
- Accurate & reliable high speed printing
- Broad connectivity options
2D Barcodes
- All major 2D barcodes
Dimensions & Weight
Overall Dimensions
- PM45: L x H x W: 483 mm x 295mm x 284 mm (19.0 in x 11.11.6 in x 11.2 in)
- PM45c with Mega Door: L x H x W: 500 mm x 245 mm x 253 mm (19.7 in x 9.6 in x 10.0 in)
- PM45c: L x H x W: 432 mm x 181 mm x 253 mm (17.0 in x 7.1 in x 10.0 in)
Maximum Ribbon Length
- 450 m (1476 ft)
Maximum Media Roll Diameter
- 213 mm (8.38 in)
Weight
- PM45: 13.2 kg (29.1lbs)
Electrical Specifications
Operating Voltage
- AC Voltage: 100 to 240V AC, 50 to 60 Hz
Operating Characteristics
Operating Temperature
- +41°F to +104°F
- +5°C to +40°C
- Operating Humidity
- 20 – 85 % non-condensing
- Storage Temperature
- -20°C to +70°C (-4°F to +152°F)
- Storage Humidity
- 5 – 90 % non-condensing
Overview
Warranty Duration
- One year factory warranty
Others
Print Technology
- Direct Thermal
- Thermal Transfer
Print Resolution
- 203 dpi
- 300 dpi
- 406 dpi
- 600 dpi
Print Volume
- Up to 10,000
- Up to 5,000
Connectivity
- Ethernet
- Wi-Fi
Print Width
- 4 inch
Industry
- Aerospace
- Healthcare
- Logistics & Warehouses
- Manufacturing
