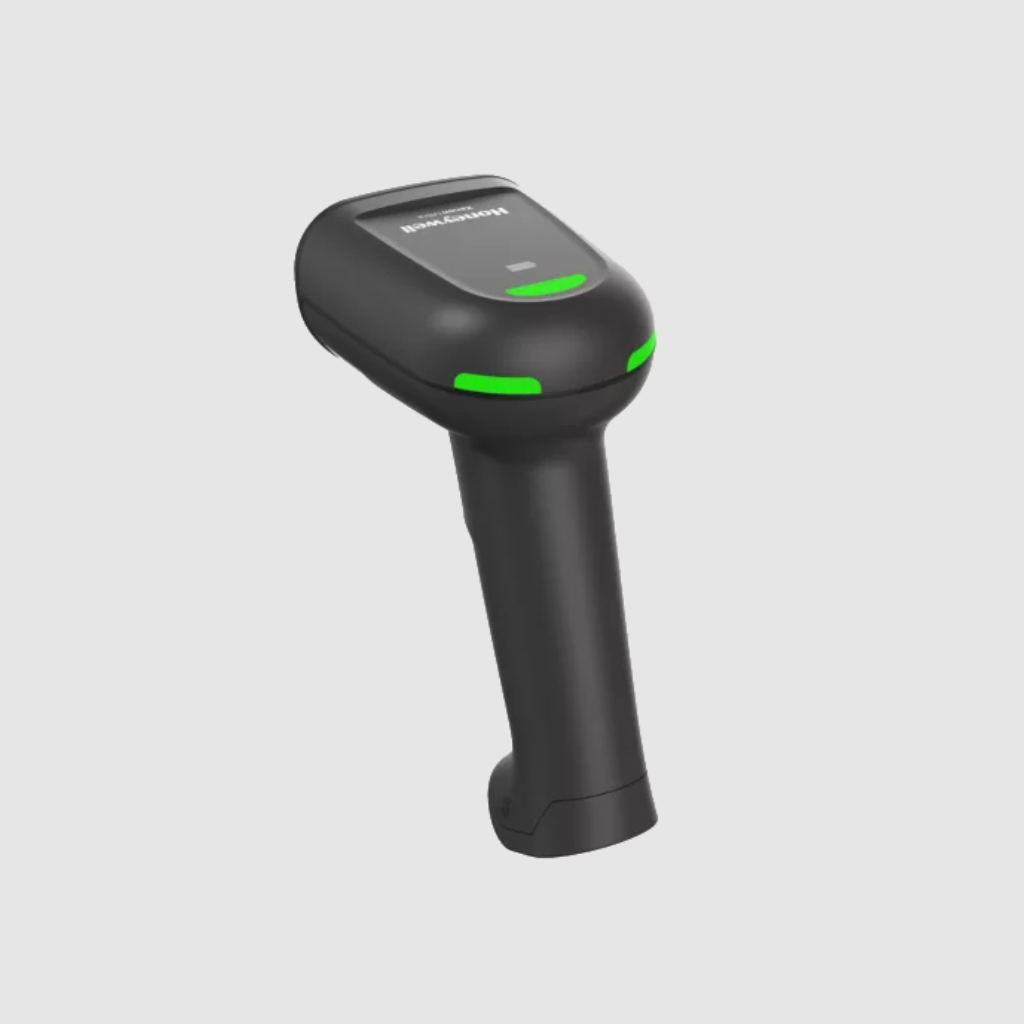

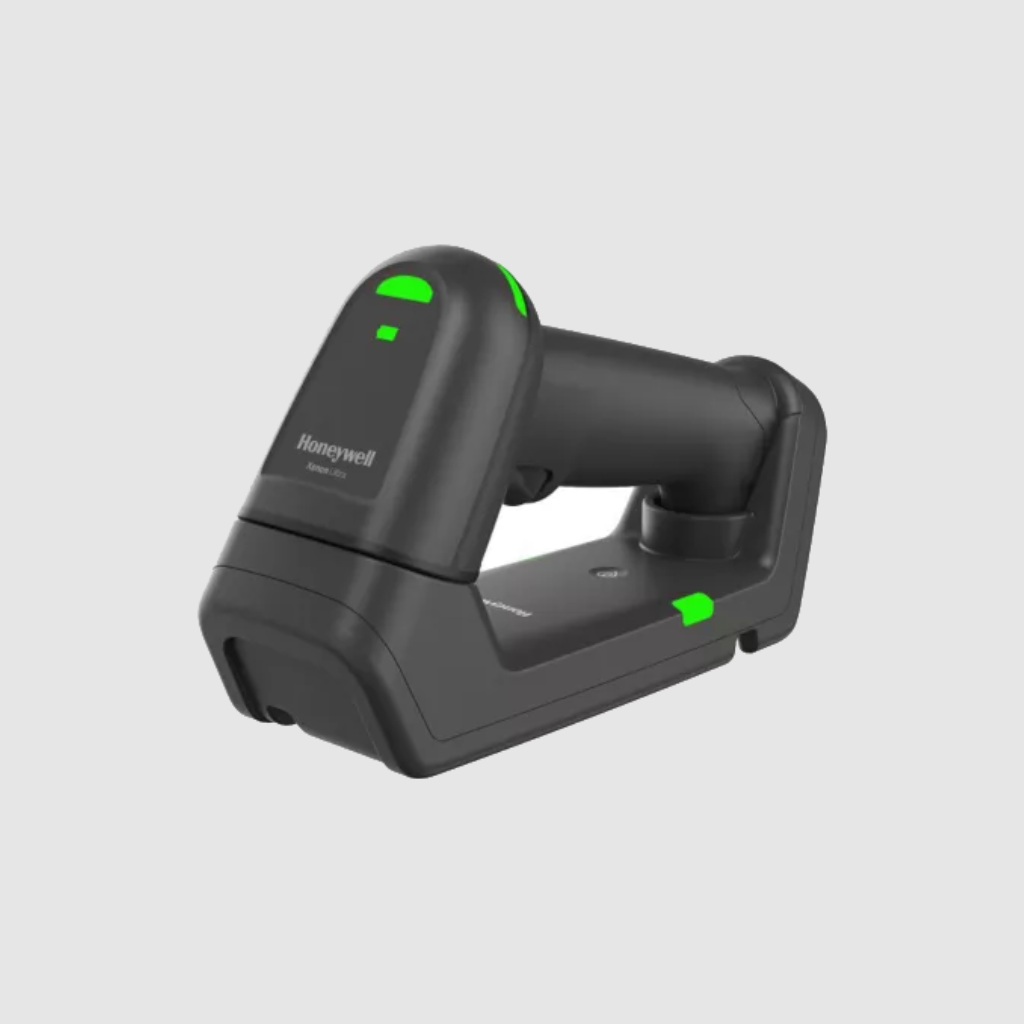

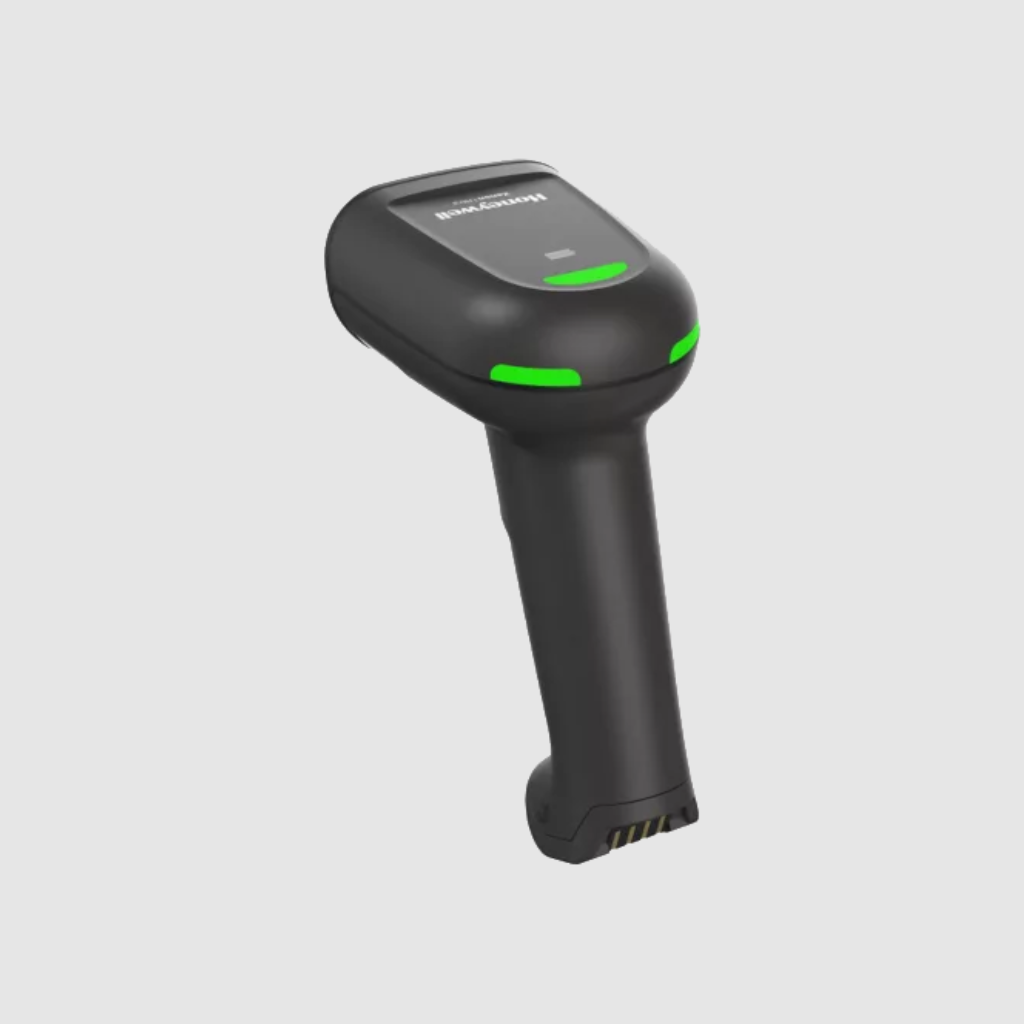

1962GHD-2USB-5-I
Xenon™ Ultra 1962 Scanner
The Xenon™ Ultra 1962g cordless scanner incorporates next-generation scan technology to provide premium performance and reliability with wireless workflow flexibility.
Description
Reliable Scanning:The Xenon Ultra scanners are equipped with green-dot LED aimers to ensure precise scans every time. Their warm-white illumination enhances print contrast down to 15%, allowing users to capture ultra-high-density barcodes, even as small as 2 mils. These features ensure easier targeting and improve scan speed on high-density and low-quality codes in high-throughput settings. Added IR capabilities reduce false activations by illuminating only when necessary, bridging the functionality gap between point-and-shoot and hands-free operations.
Technology Forward:As the pioneers of the Ultra platform, Xenon Ultra scanners enhance the trusted performance of the Extreme Performance (XP) platform. With optimized illumination and processing power, they provide faster scanning and superior data capture. Available in both corded and cordless Bluetooth configurations, these scanners include premium features such as interchangeable power sources, contactless charging, and magnetic retention for seamless integration into workflows. Furthermore, the Honeywell Scanner Management Utility (SMU) automates scanner deployment and updates, simplifying device configuration and maintenance.
Ultra Performance:The Xenon Ultra scanner offers superior scanning performance even on damaged or poor-quality barcodes and is engineered to perform with a high degree of accuracy minimizing the need to rescan trouble barcodes and help support top-line revenues. A modernized design offers an improved aesthetic enhancing user experience and meets durability needs that businesses depend upon.
Specifications
Features
Form Factor
- Gun Shape
Features
- In addition to a green-dot aimer to visibly enhance targeting and improve scan accuracy, the newly engineered and innovative scan platform empowers snappy scanning operations.
- Object Detection (IR): Avoid false scanner wake ups to lower/prevent patient annoyance or disturbances
- Optimized Illumination
- Redesigned housing enables full product gasketing reducing the chance of water and dust ingress. Improved optional magnetic retention enables scanner to stay securely connected to the CCB if deployed in kinetic conditions
- The Xenon Ultra 1962 battery and battery-free is availble in a premium contactless version, reducing the number of failed devices due to corrosion.
- The Xenon Ultra 1962 scanner can accept a lithium-ion battery or a battery-free supercapacitor, allowing enterprises to have mixed device pools and flexibility in their fleets.
Connectivity
- Bluetooth
Application
- Assembly Line
- Component Tracking
- Electronic Manufacturing and Retail
- High and low throughput POS
- In-store inventory
- Self-Checkout
Dimensions
Overall Dimensions
- Desktop/Wall Mount Base: 211.3mm x 74.2mm x 77.7mm
- Presentation Base: 82.9mm x 90.4mm x 121.6mm
- Scanner: 108.2mm x 70.4mm x 160.2mm
Scanning Specifications
Scanning Range
- Standard Range (SR) and High Density (HD) Capabilites. Refer to datasheet or Users’ Manual for further details
Scan Pattern
- Area Imager
Scan Distance
- Standard Range (0-1m)
Number of Scans
- Battery-Free Super Capacitor: 450
- Standard Battery: 80,000
Motion Tolerance
- For 13 mil UPC at optimal focus 4 meters/second
Decode Capability
- 1D/2D
Brightness
- 0 – 100,000 Lux
Network
Bluetooth Specifications
- Radio/Range: 2.4GHz Bluetooth radio v4.2 with Adaptive Frequency Hopping.
Bluetooth
- Yes
Hardware
Aimer Type
- Green Dot LED
Wireless
- Yes
Host System Interface
- Keyboard Wedge
- RS-232
- Supports USB BC1.2 charge ports
- USB
Engine Type
- Refer to the datasheet or users’ manual for full depth of field specifications
Charging
- Contact Charging
- Wireless Charging
Electrical
Operating Power
- Operating Power (Charging) Bases: 2.5W (500 mA @ 5V DC) Standard USB 10W (2A @ 5V DC) – when utilizing power adapter
Input Voltage
- 4.4V DC – 5.5V DC
Battery Types
- Battery-Free Super Capacitor
- Lithium Ion
Battery Type
- Battery-free Supercapacitor
- Li-ion Battery
Battery Capacity
- 3300 mAh Li-Ion
Environmental
Storage Temperature Range
- -40°C to 70°C (-40°F to 158°F)
Operating Temperature
- Charging: 5°C to 35°C (41°F to 95°F)
- Non-Charging: 0°C to 50°C (32°F to 122°F)
- Scanner: 0°C to 50°C (32°F to 122°F)
Operating Humidity
- 0 to 95% relative humidity, non-condensing
Standards & Approvals
Tumble Specifications
- Mil Spec Drop: 8′
- Tumble: 2,000 at 0.5m (1.6ft)
Protection Ratings
- Environmental Sealing (CCB): IP41
- Environmental Sealing (Scanner): IP52
IP Rating
- IP52
Drop Specifications
- Engineered to withstand 50 1.8 m drops to concrete across operating temp range
Service Terms
Warranty Duration
- Lithium-ion Battery Pack: One year
- Scanner: Three-year factory warranty
- Supercapacitor: Five-year factory warranty
Others
Industry
- Healthcare
- Logistics & Warehouses
- Manufacturing
- Retail
