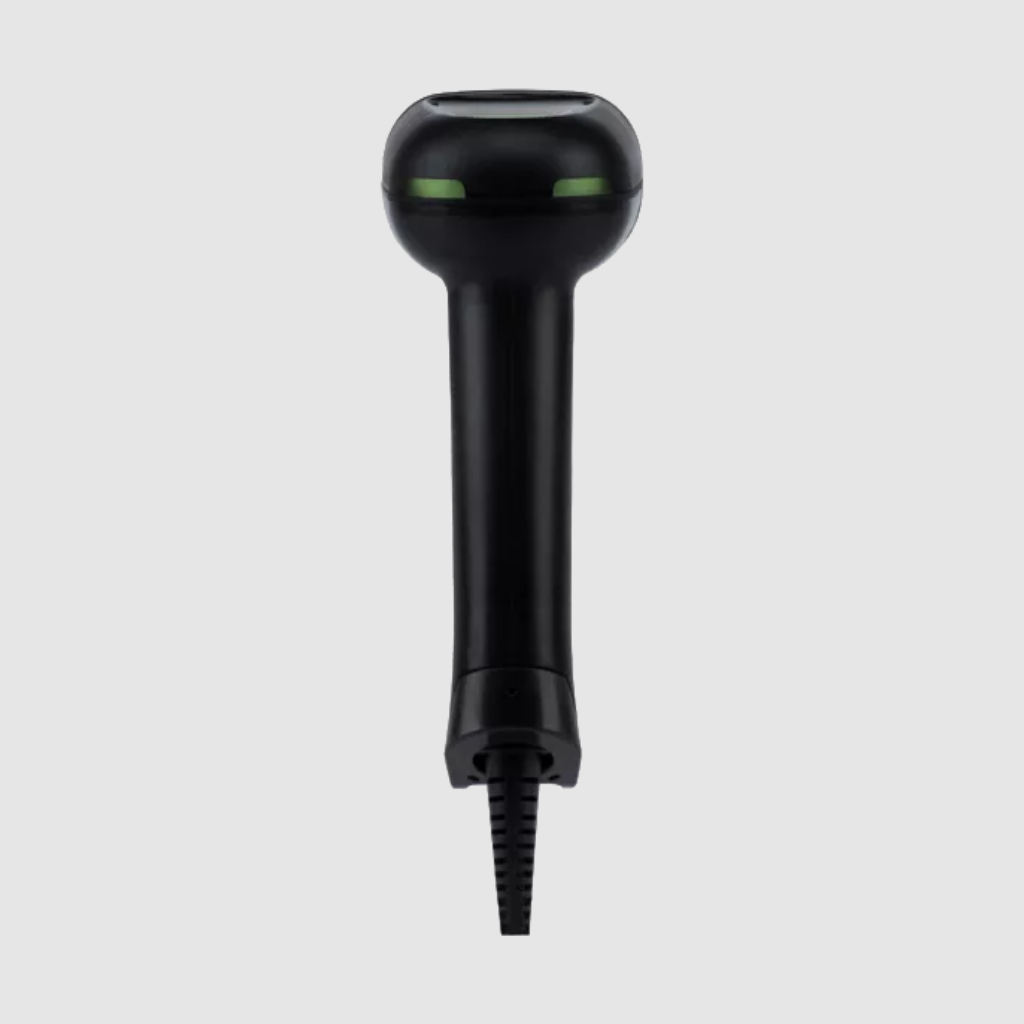

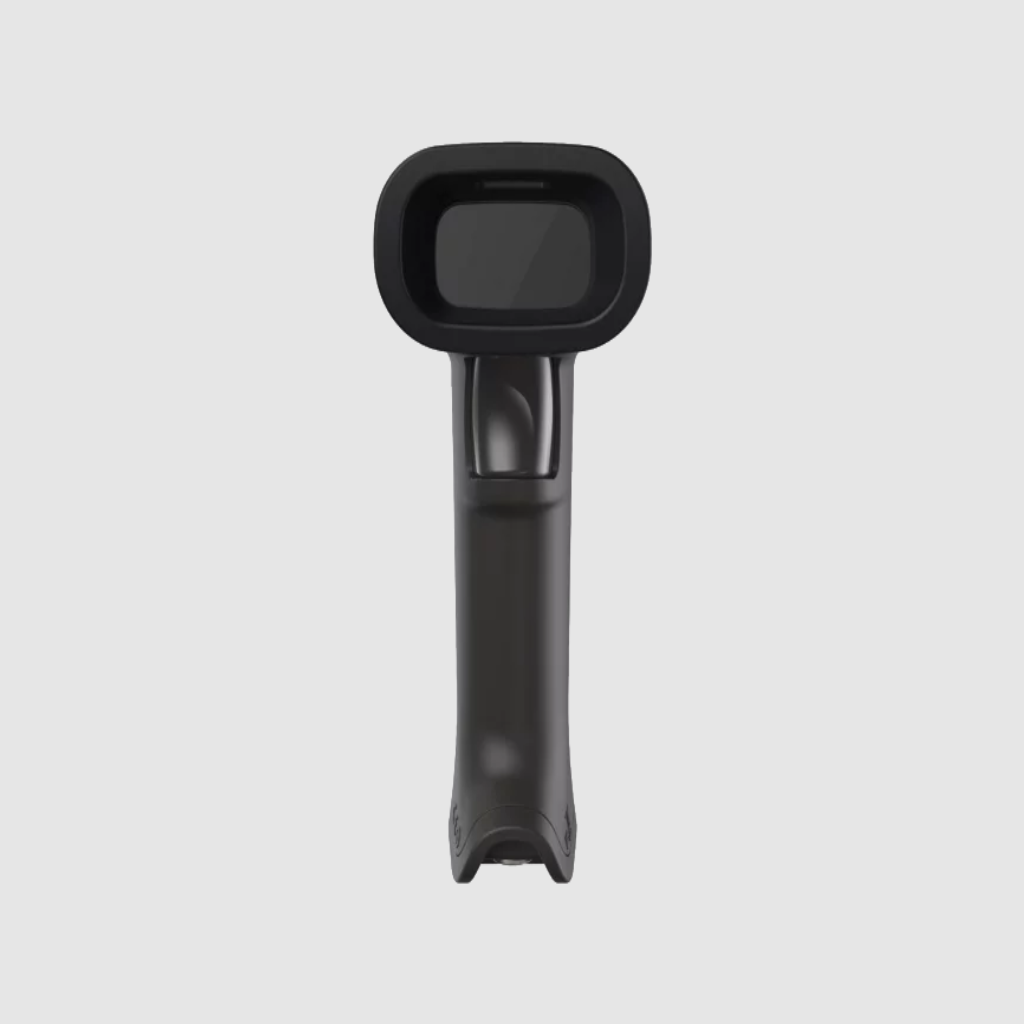

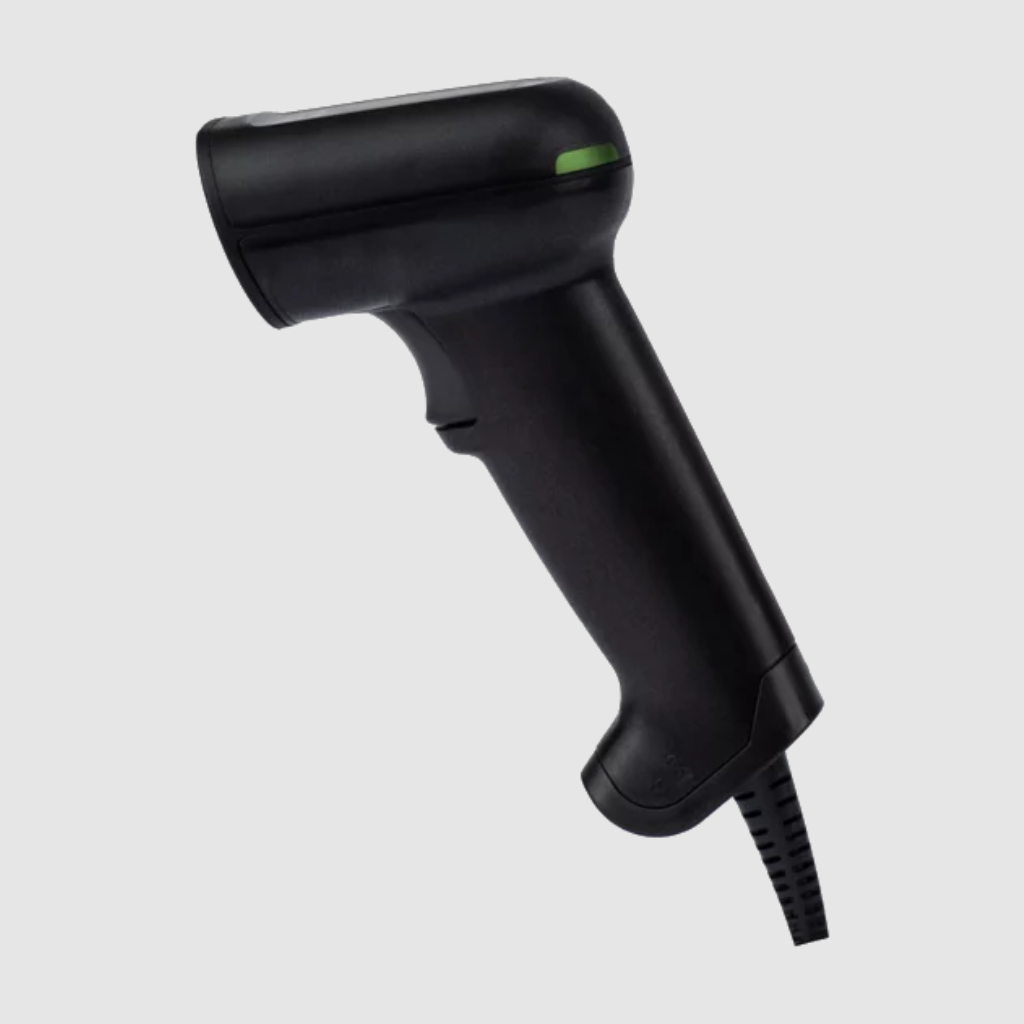

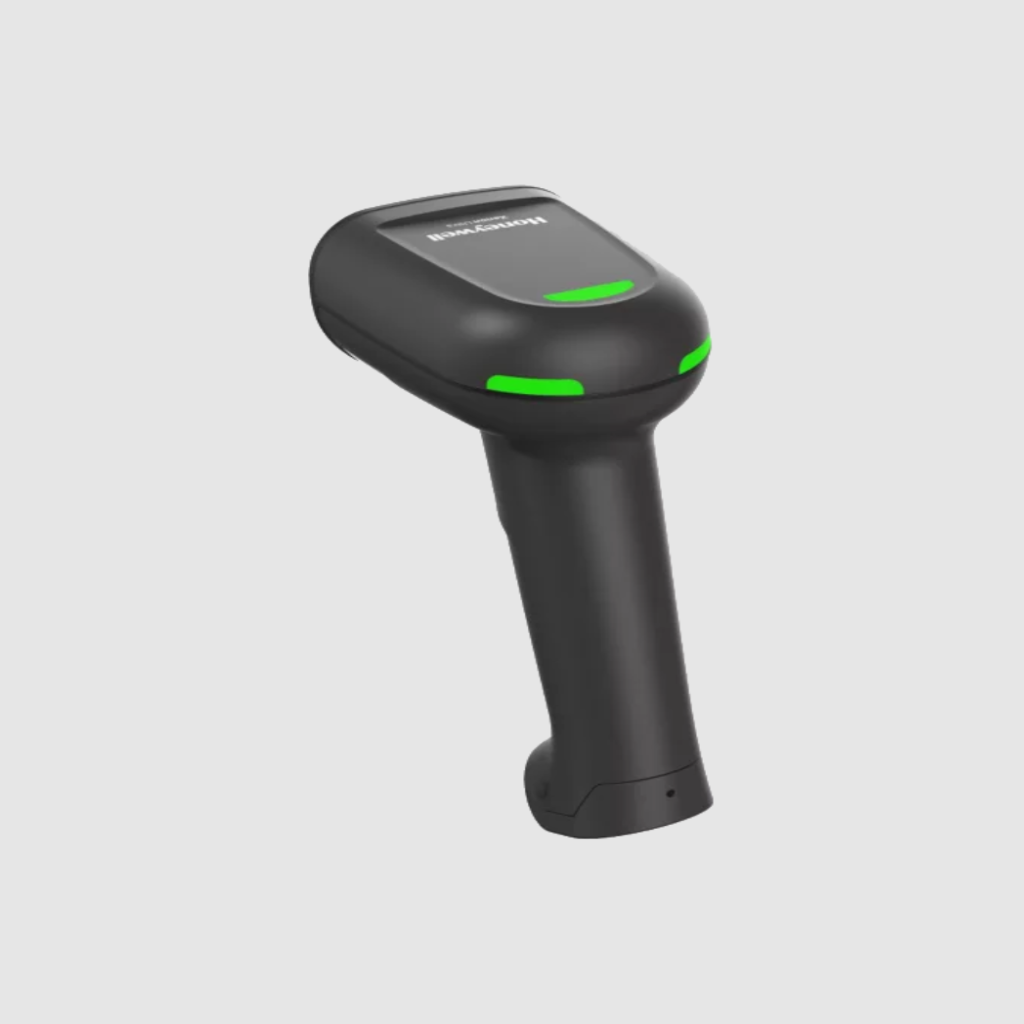

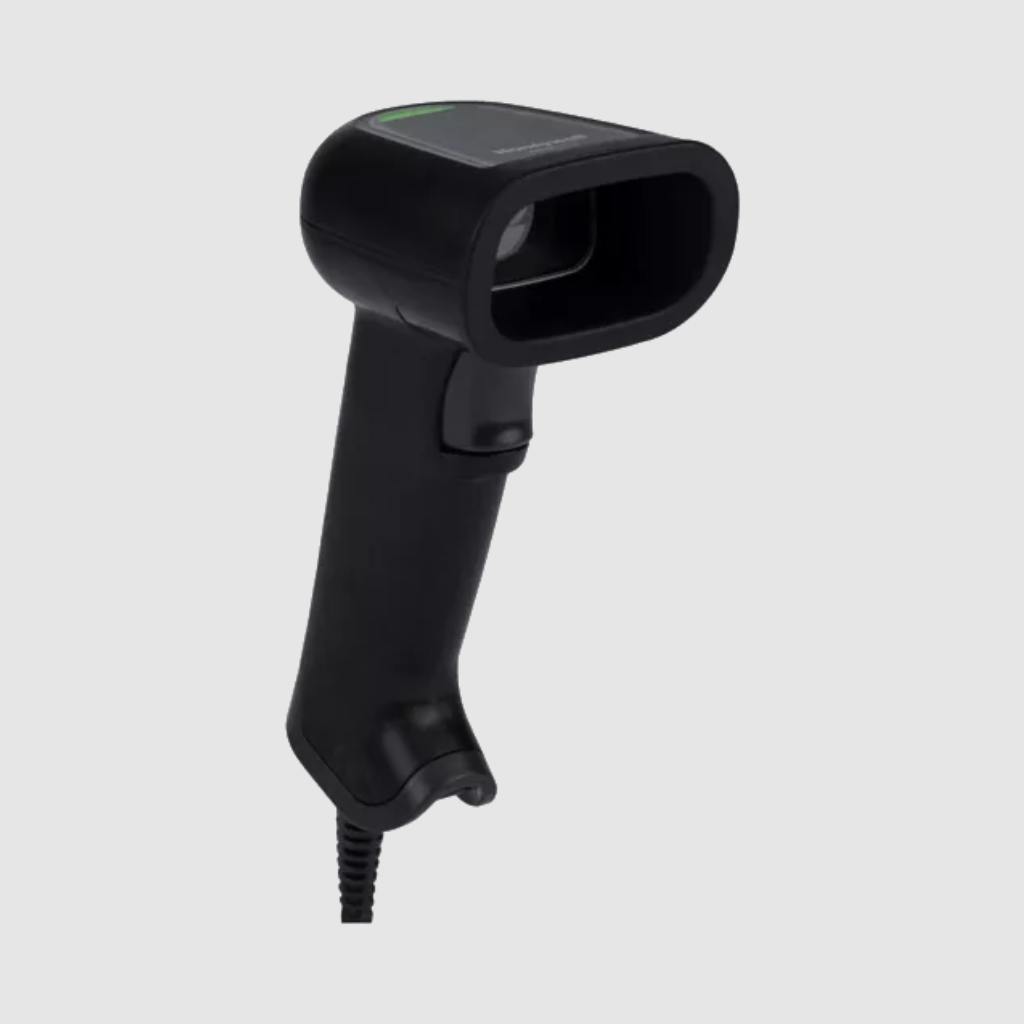

1960LI-2USB-I
PM45 Industrial Printer
The Honeywell PM45 is built for smart label solutions that help enterprises enhance automation and intelligence in manufacturing and supply chain management for high operating efficiency.
Description
The Xenon Ultra family of handheld scanners is a premium evolution of the widely known legacy Xenon and Xenon XP general-purpose scanners, taking our industry-leading scan performance and reliability one step further. The Xenon Ultra scanners deliver outstanding performance on damaged or poor-quality barcodes, greatly minimising the need for manual data entry and bolstering efficiency. Their modern design not only enhances user experience but also meets the durability standards businesses require.
Reliable Scanning: The Xenon Ultra 1960 corded scanner is equipped with green-dot LED aimers to ensure precise scans every time. Its warm-white illumination improves print contrast down to 15%, allowing users to capture ultra-high-density barcodes, even as small as 2 mils. This combination enhances targeting accuracy on high-density and low-quality codes in busy environments. Additionally, the added IR capability reduces false activations by illuminating only when necessary, streamlining hands-free operation.
Technology Forward: The Xenon Ultra 1960 represents the first scanners built on the innovative Ultra platform, building upon the trusted Extreme Performance (XP) platform. With optimised illumination and advanced processing, the Xenon Ultra 1960 achieves quicker scanning and superior data capture. Users can also utilise cables from existing Xenon XP 1950 scanners for new deployments. Furthermore, the Honeywell Scanner Management Utility (SMU) automates scanner deployment and updates, simplifying device configuration and maintenance.
Ultra Performance: This scanner excels at reading damaged or low-quality barcodes, minimizing the need for manual data entry, thus supporting both efficiency and data integrity. Its modernised design enhances user experience while meeting essential durability standards, featuring full gasketing to protect against water and dust entry.
Specifications
Features
Connectivity
- Corded
Form Factor
- Gun Shape
Application
- Assembly Line
- Component Tracking
- Electronic Manufacturing and Retail
- High and low throughput POS
- In-store inventory
- Self-Checkout
Features
- Management Utility (SMU) creates a holistic solution that automates how you deploy and update the scanners in your environment.
- Object Detection (IR): Avoid false scanner wake ups to lower/prevent patient annoyance or disturbances
- Optimized Illumination
Dimensions
Overall Dimensions
- 108.2mm x 70.4mm x 160.2mm
- 4.3in x 2.8in x 6.3in
Scanning Specifications
Decode Capability
- 1D/2D
Motion Tolerance
- For 13 mil UPC at optimal focusSR – 4 meters/secondHD – 3.4 meters/second
Scanning Range
- Standard Range (SR) and High Density (HD) Capabilities
Scan Distance
- Standard Range (0-1m)
Scan Pattern
- Area Imager
Brightness
- 0 – 100,000 Lux
Hardware
Charging
- N/A
Host System Interface
- Keyboard Wedge
- RS-232
- USB
Power Connector Type
- Corded
Aimer Type
- Green Dot LED
Wireless
- No, corded only connection
Electrical
Operating Power
- 2.5W (500 mA @ 5V DC)
Battery Type
- N/A
Environmental
Storage Temperature Range
- -40°C to 70°C
- -40°F to 158°F
Operating Temperature
- 0°C to 50°C
- 32°F to 122°F
Operating Humidity
- 0 to 95% relative humidity, non-condensing
Standards & Approvals
Tumble Specifications
- 2,000 0.5m tumbles
- 2,000 1.6ft tumbles
Drop Specifications
- Engineered to withstand 50 1.8 m drops to concrete across operating temp range
Protection Ratings
- IP52
IP Rating
- IP52
Service Terms
Warranty Duration
- 5 years
Others
Industry
- Healthcare
- Logistics & Warehouses
- Manufacturing
- Retail
