Description

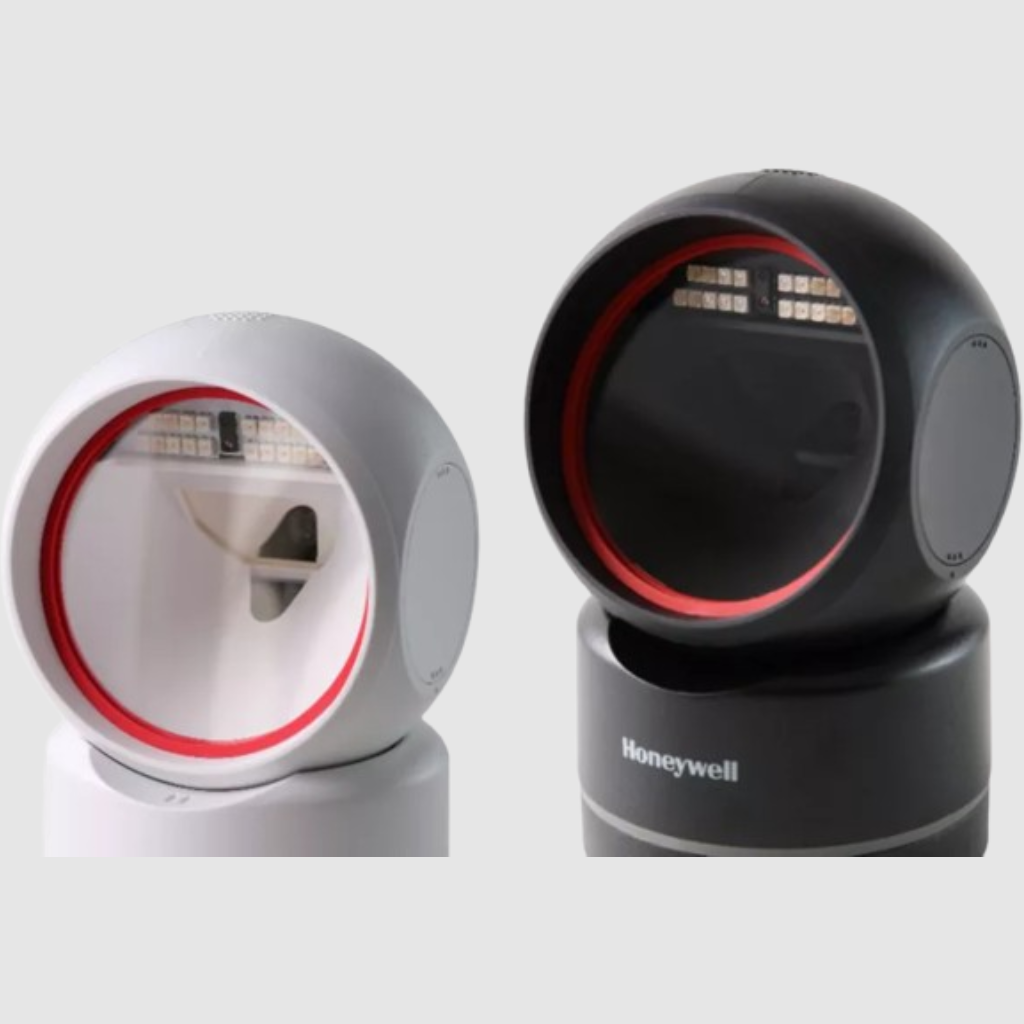

Honeywell’s Orbit HF680 point-of-sale hands free/presentation scanner is the perfect blend of affordability, performance and style. With the Orbit HF680, retailers no longer have to compromise their budgets to get performance and a modern design. Get it all with Honeywell’s Orbit HF680. Customers will zip through the checkout line with the Orbit HF680’s lightning fast scanning of both 1D and 2D barcodes.
And the Orbit HF680 minimizes checkout delays by quickly scanning traditionally difficult to read digital barcodes and even damaged barcodes. The Orbit HF680 scanning is not only fast, it’s also unobtrusive.
The low profile, recessed LED lights in the scan window light up barcodes without irritating your customers. And when the scanner is not in use, its lighting will automatically turn off.
- FASTER SCANNING – With its Megapixel sensor and 1Ghz processor, the Orbit HF680’s fast scanning will speed customers through the checkout line – even when presented with digital or damaged barcodes.
- SIMPLIFIED SCANNER INTEGRATION – Save time by rapidly configuring the Orbit HF680 with Honeywell’s EZConfig configuration utility. Simplify installations with OPOS/JPOS drivers that ensure scanner compatibility with various POSs
- MODERN STYLING – The Orbit HF680 provides retailers a scanner that can be displayed proudly at the checkout counter.
- GREAT PRICE – Exceptional performance and design at an exceptional price.
Specifications
Features
Form Factor
- Hands Free
Features
- Faster Scanning / Modern Styling / Simplified Scanner Integration
Dimensions
Weight range
- 278 +/-10g keg
Overall Width
- 88 mm
Overall Height
- 139 mm inch
Overall Dimensions
- (L × W × H): 85 mm × 88 mm × 139 mm
Overall Depth
- 85 mm inch
Scanning Specifications
Skew
- +/-70°
Scanning Range
- Standard range (SR)
Scan Pattern
- 1280 × 800 pixel
Scan Distance
- Standard Range (0-1m)
Print Contrast
- 20%
Pitch
- +/-60°
Motion Tolerance
- 2.5 m/s for 13 mil UPC
Maximum Brightness
- 100,000 Lux
Decode Capability
- 1D/2D
Hardware
Battery Type
- N/A
Power Connector Type
- Corded
Host System Interface
- USB/RS232
Engine Type
- Standard Range
Connectivity
- Corded
Charging
- N/A
Electrical
Standby Current
- 0.85 W (170 mA @ 5V)
Operating Current
- 2.0 W (400 mA @ 5V)
Input Voltage
- 5 VDC ±0.5V
Environmental
Storage Temperature Range
- -40°C to 60°C (-40°F to 140°F)
Operating Temperature
- -10°C to 40°C (14°F to 104°F)
Operating Humidity
- 0% to 95%RH, no condensation
Standards & Approvals
IP Rating
- IP42
Service Terms
Warranty Duration
- 3 Yr
ERP
Brand
- Honeywell
Others
Industry
- Retail
